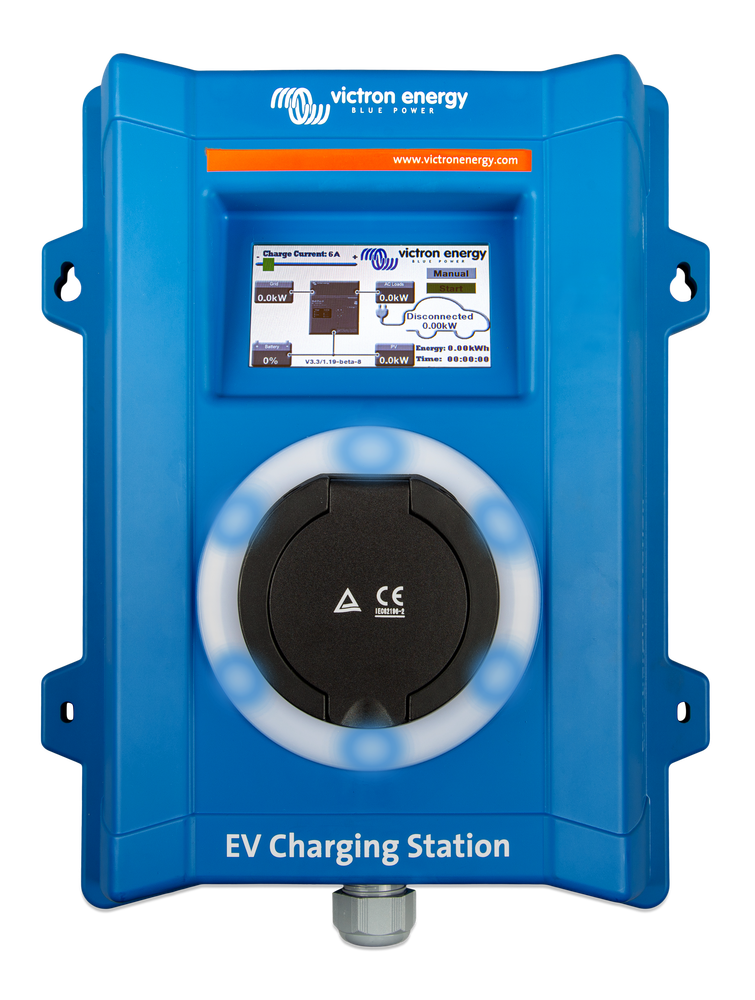

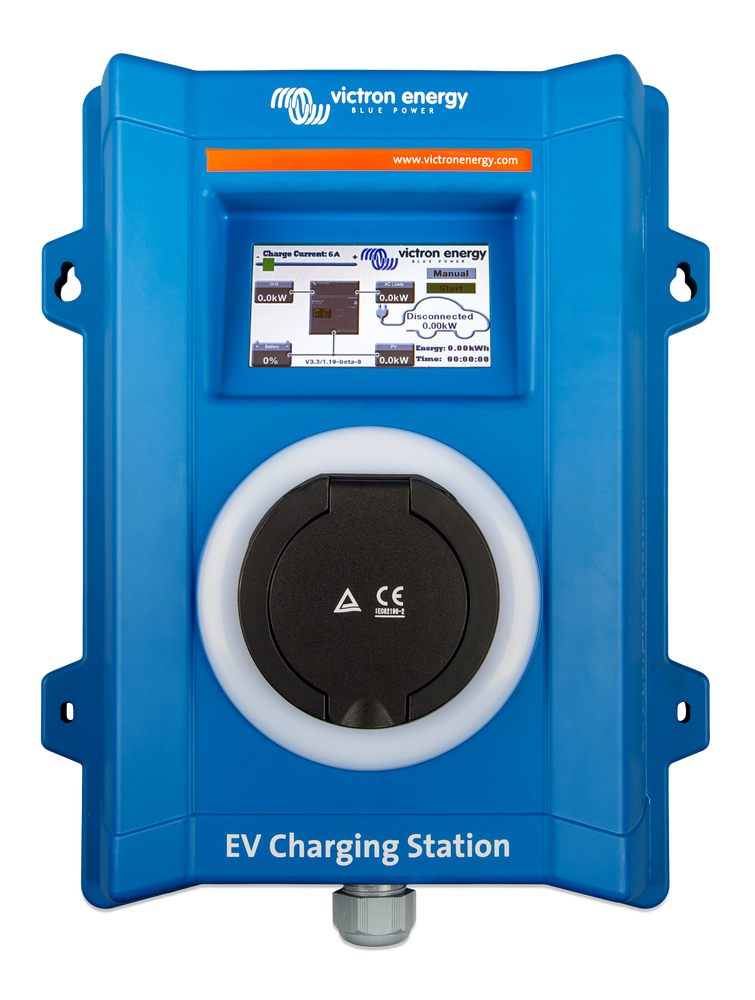

Victron EV Charging Station

EV Charging Station – 22 kW: Start Charging Smarter

Upgrade your electric vehicle (EV) charging experience with the EV Charging Station – 22 kW. Engineered for high performance and smart connectivity, this charging station is perfect for both residential and commercial use. Whether you need fast charging at home or a reliable solution for your business, our 22 kW EV Charging Station delivers efficiency, convenience, and future-ready capabilities to meet all your charging needs.

High Power EV Charging

• Versatile Charging Options: Equipped with both three-phase and single-phase capabilities, the EV Charging Station delivers a maximum of 22 kW AC in three-phase mode or 7.3 kW AC in single-phase mode. Perfectly adaptable to various electrical setups and EV requirements.

• Fast Charging: Add up to 30-35 miles of range per hour, ensuring your EV is ready to go when you are. Choose between 40A and 48A models to match your energy needs and charging speed preferences.

Connected and Smart

• WiFi Communication: Stay connected with 802.11 b/g/n WiFi standards. Configure, monitor, and control your charging station effortlessly via the myWallbox app using either Access Point or Station mode.

• Bluetooth and App Control: Easily manage your charging sessions through Bluetooth connectivity and the intuitive VictronConnect App. Gain full control and an overview of all operating parameters and session statistics at a glance.

User-Friendly Interface

• LCD Touch Screen: Navigate and control your charging station with ease using the built-in 4.3-inch LCD Touch Screen. Monitor charging status, adjust settings, and manage your charging sessions directly from the screen.

• Programmable RGB Light Ring: The fully programmable RGB Light Ring around the charging port provides quick visual feedback on the device’s state (e.g., disconnected, charging, charged) through various light effects, enhancing usability and aesthetics.

Flexible Charging Modes

1. Manual Mode: Configure output current between 6-32 A using the slider on the LCD touch screen or via the web page. Manually start or stop the charging process as needed.

2. Automatic Mode: Optimize your PV system efficiency by allowing the charging station to detect and utilize excess solar power for charging your EV.

3. Scheduled Mode: Take advantage of lower energy prices by scheduling your EV to charge during specific time intervals, such as overnight.

Advanced Energy Management

• Eco-Smart Features: Harness the full power of your solar panels for sustainable EV charging. Charge using 100% solar energy or a mix of solar and grid energy to reduce your carbon footprint and energy costs. Requires a power meter.

• Power Boost & Power Sharing: Optimize energy distribution and enhance overall charging efficiency with advanced power management features.

Seamless Integration

• GX Devices and VRM Portal: Control and monitor your EV Charging Station directly from GX device touch displays and the VRM Portal. Access real-time and customizable reports for configurable time periods, enhancing your energy management capabilities.

Easy Installation and Versatility

• Flexible Installation Options: Choose between an easy NEMA 14-50 plug installation for the 40 Amp model or opt for a hardwired setup for a more permanent solution. Our certified Wallbox installation partners, COIL, ensure a smooth and professional installation process.

• Indoor and Outdoor Use: With an IP44 protection category, the EV Charging Station is designed for both indoor and outdoor installations, providing water and dust resistance for reliable performance in any environment.

• Long 25-Foot Cable: Enjoy maximum flexibility with a 25-foot cable, allowing you to charge your EV from various angles and locations without constraints.

Secure and Reliable

• UL 2594 Listed: Certified for electrical safety, ensuring your charging station meets stringent safety standards for peace of mind.

• Remote Locking and Unlocking: Secure your charger remotely, preventing unauthorized access and ensuring your EV is always protected.

• Tire Pressure Monitoring: Continuously monitor tire pressure to ensure optimal performance and safety during charging.

• Reversible and Customizable Settings: Easily configure your charger’s settings through the integrated web interface, adapting to your specific needs and preferences.

Specifications at a Glance

• Charging Power:

• 22 kW AC (three-phase)

• 7.3 kW AC (single-phase)

• Charging Current Range: 6-32 A

• Connectivity:

• WiFi: 802.11 b/g/n (2.4 GHz only)

• Bluetooth

• VictronConnect App

• Display: 4.3-inch LCD Touch Screen

• Light Ring: Programmable RGB Light Ring with 55 configurable light effects

• Input Voltage Range: 170 – 265 VAC

• Protection:

• IP44 Protection Category

• External RCD Required

• Connector Type: IEC 62196 Type 2

• Self-Consumption: 15 mA @ 230 V

• Dimensions: 377 mm (H) x 307 mm (W) x 148 mm (D)

• Weight: 3 kg

• Power Terminals: 6-10 mm² / AWG 10-8

• Standards:

• IEC 61851-1

• IEC 61851-22

• Relay Contact Weld Detection

• Missing Protective Conductor Detection

• Missing Ground Detection

• Shorted CP Detection

• Operating Temperature: -25°C to +50°C

• Storage Temperature: -40°C to +80°C

• Humidity: 95%, non-condensing

• Enclosure Color: Blue (RAL 5012)

• Warranty: Comprehensive coverage details available upon inquiry

Why Choose the EV Charging Station – 22 kW?

• High Power and Versatility: Delivering up to 22 kW AC, this charging station is capable of meeting the diverse charging needs of all electric vehicles on the market today.

• Smart Connectivity: Seamlessly integrate with your smart devices and control your charging sessions remotely through the myWallbox app and VictronConnect App.

• Energy Efficient: Optimize your energy usage with intelligent management features like Eco-Smart, Power Boost, and Power Sharing, enhancing sustainability and reducing costs.

• User-Friendly Interface: Navigate and control your charging station effortlessly with the intuitive LCD touch screen and programmable RGB light ring.

• Secure and Reliable: Built with top-tier safety features and certified for electrical safety, ensuring a secure and dependable charging experience every time.

• Future-Ready: Designed to handle tomorrow’s more powerful EV batteries, ensuring your charger remains relevant as your electric vehicle evolves.

• Flexible Installation: Suitable for both indoor and outdoor setups with easy installation options, providing versatility to fit any home or commercial space.

Start Charging Smarter Today

Upgrade to the EV Charging Station – 22 kW and experience the future of electric vehicle charging. With its high power, smart connectivity, and energy-efficient features, this charging station is the perfect addition to any home or business, ensuring your EV is always ready to hit the road.
